40 x 40 aluminium extrusion regular tube
Basic Information
-
Model NO.: 40x40 regular tube
-
Surface Treatment: as Per Required
-
Alloy: Alloy
-
Material: AA6061/6063
-
Legnth: up to 6000 mm
-
Height or Diameter: up to 150 mm
-
Aluminum Temper: T5/T6
-
Packing Way: Best Suitable Packing Way
-
Transport Package: Best Suitable Packing Way
-
HS Code: 7608100000
-
Shape: Multi Kinds
-
Grade: 6000 Series
-
Temper: T6
-
Width or Diameter: up to 150 mm
-
Wall Thickness: up to 10 mm
-
Surface Finish: Original, Painting,Powder Coating, Zinc Plating
-
Application: Heat Exchanger and Industrial Fields
-
Origin: Guangdong, China

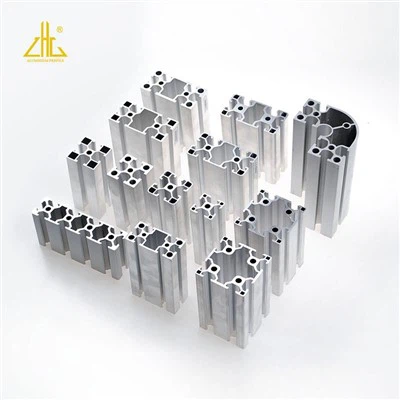

Products Show:
Processing
The process begins by heating the stock material. It is then loaded into the container in the press. A dummy block is placed behind it where the ram then presses on the material to push it out of the die. Afterward the extrusion is stretched in order to straighten it. If better properties are required then it may be heat treated or cold worked.
Product Description
|
1. Aluminum alloy number |
||||||||||||||
|
No. |
Aluminum Alloy Number |
|||||||||||||
|
1.1 |
1100,1060,1070,2024,3003,5A02,6061,6063,etc. |
|||||||||||||
|
2. Product size and tolerance |
||||||||||||||
|
No. |
Specification |
Size |
Tolerance |
|||||||||||
|
2.1 |
Length (mm) |
Up to 5000 |
±1 |
|||||||||||
|
2.2 |
Width (mm) |
Up to 150 |
±0.08 |
|||||||||||
|
2.3 |
Height (mm) |
Up to 150 |
±0.08 |
|||||||||||
|
2.4 |
Thickness (mm) |
Up to 10 |
±0.02 |
|||||||||||
|
3. Chemical composition for some typical alloys |
||||||||||||||
|
No. |
Internal |
AA number |
Chemical Composition (%) |
|||||||||||
|
Si |
Fe |
Cu |
Mn |
Mg |
Zn |
Ti |
Zr |
Bi |
Others |
Al |
||||
|
Each |
Total |
|||||||||||||
|
3.1 |
1060 |
1060 |
0.25 |
0.35 |
0.05 |
0.03 |
0.03 |
0.05 |
0.03 |
|
|
0.03 |
|
99.6 |
|
3.2 |
1070 |
1070 |
0.2 |
0.25 |
0.04 |
0.03 |
0.03 |
0.04 |
0.03 |
|
|
0.03 |
|
99.7 |
|
3.3 |
1100 |
1100 |
0.95 |
0.05-0.2 |
0.05 |
|
|
0.1 |
|
|
0.05 |
0.15 |
RE |
|
|
3.4 |
3003 |
3003 |
0.6 |
0.7 |
0.05-0.2 |
1-1.5 |
0.05 |
0.1 |
|
|
|
0.05 |
0.15 |
RE |
|
3.5 |
3005 |
3005 |
0.6 |
0.7 |
0.3 |
1.0-1.5 |
0.2-0.6 |
0.25 |
|
Cr 0.1 |
|
0.05 |
0.15 |
RE |
|
3.6 |
4004 |
4004 |
9.0-10.5 |
0.8 |
0.25 |
0.1 |
1.0-2.0 |
0.2 |
|
|
|
0.05 |
0.15 |
RE |
|
3.7 |
4045 |
4045 |
9.0-11.0 |
0.8 |
0.3 |
0.05 |
0.05 |
0.1 |
|
|
|
0.05 |
0.15 |
RE |
|
3.8 |
4047 |
4047 |
11.0-13.0 |
0.8 |
0.3 |
0.15 |
0.05 |
0.2 |
|
|
|
0.05 |
0.15 |
RE |
|
3.9 |
4104 |
4104 |
9.0-10.5 |
0.8 |
0.25 |
0.1 |
1.0-2.0 |
0.2 |
|
|
0.05-0.2 |
0.05 |
0.15 |
RE |
|
3.10 |
4343 |
4343 |
6.8-8.2 |
0.8 |
0.25 |
0.1 |
0.05 |
0.2 |
|
|
|
0.05 |
0.15 |
RE |
|
3.11 |
4343A |
4343A |
6.8-8.2 |
0.6 |
0.1 |
0.1 |
0.02 |
0.1 |
|
|
|
0.05 |
0.15 |
RE |
|
3.12 |
6060 |
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
0.15 |
0.1 |
Cr 0.05 |
|
0.05 |
0.15 |
RE |
|
3.13 |
6061 |
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.25 |
0.15 |
Cr 0.04-0.35 |
|
0.05 |
0.5 |
RE |
|
3.14 |
6063 |
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
Cr 0.1 |
|
0.05 |
0.15 |
RE |
|
3.15 |
6A02 |
6A02 |
0.5-1.2 |
0.5 |
0.2-0.6 |
0.1-0.35 |
0.45-0.9 |
0.2 |
0.15 |
|
|
0.05 |
0.15 |
RE |
|
3.16 |
7072 |
7072 |
0.7 |
0.1 |
0.1 |
0.1 |
0.1 |
0.8-1.3 |
|
|
|
0.05 |
0.15 |
RE |
|
4. Mechanical properties for some typical alloys |
||||||||||||||
|
No. |
Alloy number |
Thick. |
Temper |
Yield Strength |
Tensile Strength |
Elongation |
||||||||
|
4.1 |
3003 |
0.08-0.15 |
O |
35 |
95-135 |
8 |
||||||||
|
4.2 |
3003 |
0.16-0.35 |
O |
35 |
95-135 |
10 |
||||||||
|
4.3 |
3003 |
0.15-0.3 |
H12 |
90 |
120-175 |
0.5 |
||||||||
|
4.4 |
3003 |
0.06-0.08 |
H14 |
125 |
145-185 |
0.5 |
||||||||
|
4.5 |
3003 |
0.081-0.3 |
H14 |
125 |
145-200 |
0.5 |
||||||||
|
4.6 |
3003 |
0.06-0.16 |
H16 |
160 |
165-205 |
0.5 |
||||||||
|
4.7 |
3003 |
0.2-0.3 |
H24 |
125 |
145-205 |
6 |
||||||||
|
4.8 |
3003-1 |
0.35-3.0 |
O |
35 |
95-135 |
20 |
||||||||
|
4.9 |
3003-1 |
0.40-3.0 |
H14 |
125 |
145-185 |
3 |
||||||||
|
4.10 |
3003-1 |
1.0-3.0 |
H24 |
125 |
145-185 |
10 |
||||||||
|
4.11 |
6A02 |
0.8-4.5 |
O |
≤85 |
≤150 |
20 |
||||||||
|
4.12 |
6060 |
0.8-4.5 |
O |
≤85 |
≤150 |
20 |
||||||||
|
4.13 |
6063 |
0.8-4.5 |
O |
≤85 |
≤150 |
20 |
||||||||
|
4.14 |
4343 |
0.07-3.0 |
O |
35 |
95-150 |
8 |
||||||||
|
4.15 |
4343 |
0.07-3.0 |
H14 |
120 |
140-200 |
0.5 |
||||||||
|
4.16 |
4045 |
0.07-3.0 |
O |
35 |
95-150 |
8 |
||||||||
|
4.17 |
4045 |
0.07-3.0 |
H14 |
120 |
140-200 |
0.5 |
||||||||
|
4.18 |
4104 |
0.07-3.0 |
O |
35 |
95-150 |
8 |
||||||||
|
4.19 |
4104 |
0.07-3.0 |
H14 |
120 |
140-200 |
0.5 |
||||||||
|
4.20 |
4A13 |
0.07-3.0 |
O |
35 |
95-150 |
8 |
||||||||
|
4.21 |
4A13 |
0.07-3.0 |
H14 |
120 |
140-200 |
0.5 |
||||||||
|
4.22 |
4047 |
0.07-3.0 |
O |
35 |
95-150 |
8 |
||||||||
|
4.23 |
4047 |
0.07-3.0 |
H14 |
120 |
140-200 |
0.5 |
||||||||
|
4.24 |
3003 |
0.25-0.35 |
H24 |
130 |
155-205 |
6 |
||||||||
|
4.25 |
3003 |
0.1-0.2 |
H14 |
125 |
145-185 |
1 |
||||||||
|
4.26 |
3003 |
0.1-0.3 |
O |
35 |
95-135 |
10 |
||||||||
|
4.27 |
3003 |
0.3-0.8 |
H14 |
125 |
145-185 |
2 |
||||||||
|
4.28 |
3003 |
0.8-2.5 |
H14 |
125 |
145-185 |
4 |
||||||||
|
4.29 |
3003 |
0.5-1.6 |
O |
35 |
145-185 |
20 |
||||||||
|
4.30 |
3003-1 |
0.3-1.8 |
O |
35 |
95-135 |
20 |
||||||||
|
4.31 |
3003-1 |
0.5-4.0 |
O |
35 |
95-135 |
25 |
||||||||
|
4.32 |
3005 Mod |
0.25-0.6 |
H24 |
150 |
185-235 |
8 |
||||||||
|
4.33 |
6060 |
0.8-4.5 |
O |
≤85 |
≤150 |
20 |
||||||||
|
4.34 |
6063 |
0.8-4.5 |
O |
≤85 |
≤150 |
20 |
||||||||
|
4.35 |
3005 |
0.8-4.5 |
O |
40 |
80-120 |
20 |
||||||||
|
4.36 |
3005 |
0.6-4.5 |
H22 |
110 |
145-195 |
15 |
||||||||
|
4.37 |
1100 |
0.2-0.3 |
H24 |
90 |
115-155 |
3 |
||||||||
|
4.38 |
6A02 |
1.0-5.0 |
O |
≤85 |
≤150 |
20 |
||||||||
|
5. Surface finish and other properties |
||||||||||||||
|
No. |
Item |
Description |
||||||||||||
|
5.1 |
Surface finish |
Original, painting,powder coating, zinc plating, etc. |
||||||||||||
|
6. Packing,Shipping and others |
||||||||||||||
|
No. |
Item |
Description |
||||||||||||
|
6.1 |
Packing |
To be packed in water proof paper bundle |
||||||||||||
|
6.2 |
Marking |
Each bundle to be legibly marked with the name of the manufacturer or supplier, the alloy designation of material,condition,dimensions and weight |
||||||||||||
|
6.3 |
Shipping tools |
Ship goods by van to departune port then by sea to desitination port |
||||||||||||
|
6.4 |
Quantity variation |
±10% variation with order quantity shall be acceptable |
||||||||||||
7. Brief of extrusion
Drawing is a similar process, which uses the tensile strength of the material to pull it through the die. This limits the amount of change which can be performed in one step, so it is limited to simpler shapes, and multiple stages are usually needed. Drawing is the main way to produce wire. Metal bar and tube are also often drawn.
Extrusion may be continuous (theoretically producing indefinitely long material) or semi-continuous (producing many pieces). The extrusion process can be done with the material hot or cold. Commonly extruded materials include metals, polymers, ceramics, concrete, play dough, and foodstuffs. The products of extrusion are generally called "extrudates".
Hollow cavities within extruded material cannot be produced using a simple flat extrusion die, because there would be no way to support the center barrier of the die. Instead, the die assumes the shape of a block with depth, beginning first with a shape profile that supports the center section. The die shape then internally changes along its length into the final shape, with the suspended center pieces supported from the back of the die. The material flows around the supports and fuses together to create the desired closed shape.
The extrusion process in metals may also increase the strength of the material.
