Foshan Pailian Aluminium Ltd is one of the most reliable manufacturers and suppliers of extruded 6061 6063 aluminum oval tube in China. Welcome to wholesale cheap extruded 6061 6063 aluminum oval tube made in China here from our factory. We also accept customized orders.
in one-stop service
Zhonglian Aluminum is a leading aluminum profile manufacturer and supplier with over 33 years of expertise in extrusion. 6061 aluminum oval tubes offer high strength and good weldability, making them ideal for structural applications, while 6063 aluminum oval tubes are known for their superior surface finish and corrosion resistance, perfect for aesthetic - driven projects. Available in a wide range of sizes, wall thicknesses, and lengths, our oval tubes can meet diverse project requirements.
Products features

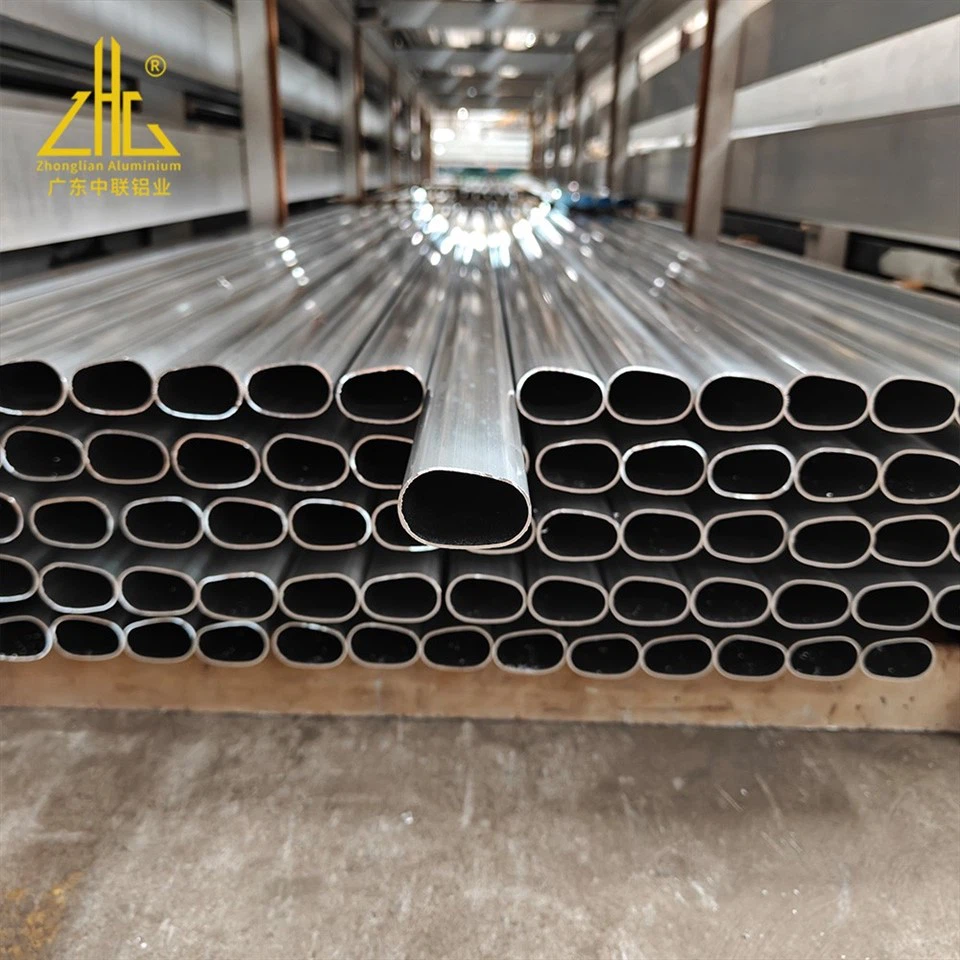

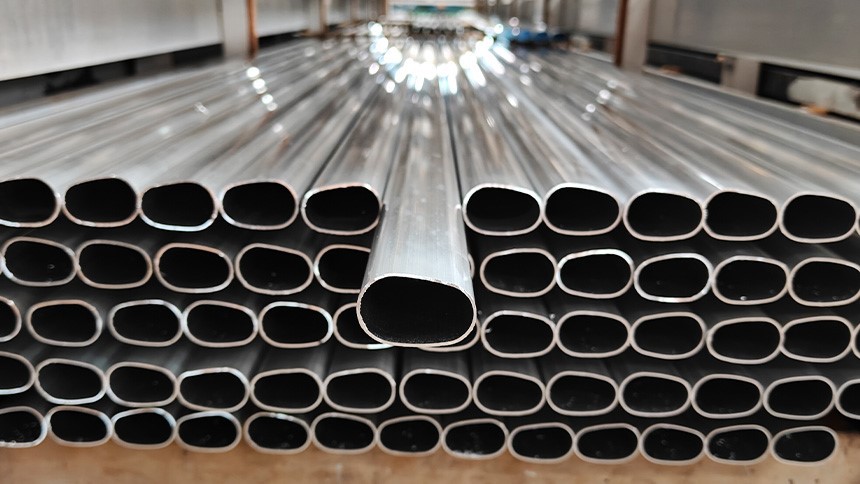

Extruded High-Performance, Precision-Crafted 6061 & 6063 Aluminum Oval Tube
Unmatched Quality and Customization
High Strength & Lightweight
6061 aluminum offers superior structural strength, while 6063 provides excellent corrosion resistance and surface finish.
Precision Extrusion
Tight tolerances (±0.1mm) ensure seamless integration in assemblies.
Excellent Machinability
Ideal for CNC deep machining, drilling, cutting, and welding.
Corrosion & Weather Resistance
Anodized or powder-coated options enhance longevity.
Specifications of Extruded 6061 & 6063 Aluminum Oval Tubes
|
Parameter |
6061 Aluminum Oval Tube |
6063 Aluminum Oval Tube |
|
Alloy Grade |
6061 (Al-Mg-Si) |
6063 (Al-Mg-Si, higher ductility) |
|
Temper |
T4, T5, T6, T651 |
T5, T6 |
|
Standard |
ASTM B221, AMS 4152, EN 573 |
ASTM B221, AMS 4152, EN 573 |
|
Tensile Strength |
124-310 MPa (T6: ~290 MPa) |
130-186 MPa (T6: ~241 MPa) |
|
Yield Strength |
55-276 MPa (T6: ~240 MPa) |
48-145 MPa (T6: ~214 MPa) |
|
Elongation |
8-12% (T6: ~10%) |
10-15% (T6: ~12%) |
|
Hardness (Brinell) |
95 HB (T6) |
60 HB (T6) |
|
Density |
2.70 g/cm³ |
2.70 g/cm³ |
|
Melting Point |
582-652°C |
615-655°C |
|
Thermal Conductivity |
167 W/m·K |
201 W/m·K |
|
Electrical Conductivity |
43% IACS |
50% IACS |
|
Corrosion Resistance |
Excellent (anodizing recommended) |
Superior (ideal for surface finishes) |
|
- Major Axis (mm) |
20-300 (customizable) |
20-300 (customizable) |
|
- Minor Axis (mm) |
10-150 (customizable) |
10-150 (customizable) |
|
- Wall Thickness (mm) |
1.0-10.0 (±0.1mm tolerance) |
1.0-10.0 (±0.1mm tolerance) |
|
- Length (mm) |
1000-8000 (or cut-to-size) |
1000-8000 (or cut-to-size) |
|
Surface Finish |
Mill finish, anodized, powder-coated, brushed |
Mill finish, anodized, powder-coated, polished |
|
Key Applications |
Structural frames, automotive parts, marine hardware |
Architectural trims, heat sinks, consumer electronics |
Product Design Flexibility
At Zhonglian Aluminum, we understand that every project has unique design requirements. That's why we offer unparalleled design flexibility for our extruded 6061 & 6063 aluminum oval tubes. We can customize the size, shape, and wall thickness of the tubes according to your specific needs. Our in - house design team works closely with you to develop custom extrusion dies, ensuring that the final product meets your exact specifications. Whether you need a standard oval tube or a more complex profile with special features, we have the expertise and capabilities to bring your design to life.
CNC Deep Processing
Our comprehensive CNC deep - processing services take the functionality and value of our 6061 & 6063 aluminum oval tubes to the next level. With advanced CNC machining centers, we can perform a variety of operations, including drilling, milling, turning, and threading. This allows us to create complex shapes, precise holes, and intricate details on the tubes, meeting the most demanding requirements of your projects. Whether it's for creating custom - fit components for machinery or adding unique features to architectural elements, our CNC deep - processing capabilities ensure high - quality, precision - engineered products.
Surface Treatment
To enhance the appearance and performance of our extruded 6061 & 6063 aluminum oval tubes, we offer a wide range of surface treatment options:
- Anodizing: This process creates a durable oxide layer on the surface of the tube, improving corrosion resistance and providing a beautiful, uniform finish. Anodized tubes are available in various colors, allowing you to choose the one that best suits your project's aesthetic.
- Powder Coating: Our powder - coating service provides a thick, protective layer that offers excellent scratch resistance and UV protection. With a vast selection of colors and textures, powder - coated aluminum oval tubes can add a vibrant and long - lasting look to your products.
- Polishing: For a high - gloss, mirror - like finish, we offer polishing services. Polished aluminum oval tubes are perfect for applications where a luxurious and refined appearance is desired, such as in high - end furniture and decorative items.
Strict Quality Inspection
Quality is our top priority at Zhonglian Aluminum. We have a rigorous quality inspection system in place to ensure that every extruded 6061 & 6063 aluminum oval tube meets the highest industry standards. Our inspection process starts from the selection of raw materials, where we source only premium - grade aluminum alloys. During the extrusion process, our experienced technicians monitor key parameters such as temperature, pressure, and speed to ensure consistent quality. After production, each tube undergoes a series of tests, including dimensional inspection, mechanical property testing, and surface quality inspection. Only products that pass all these tests are approved for delivery.

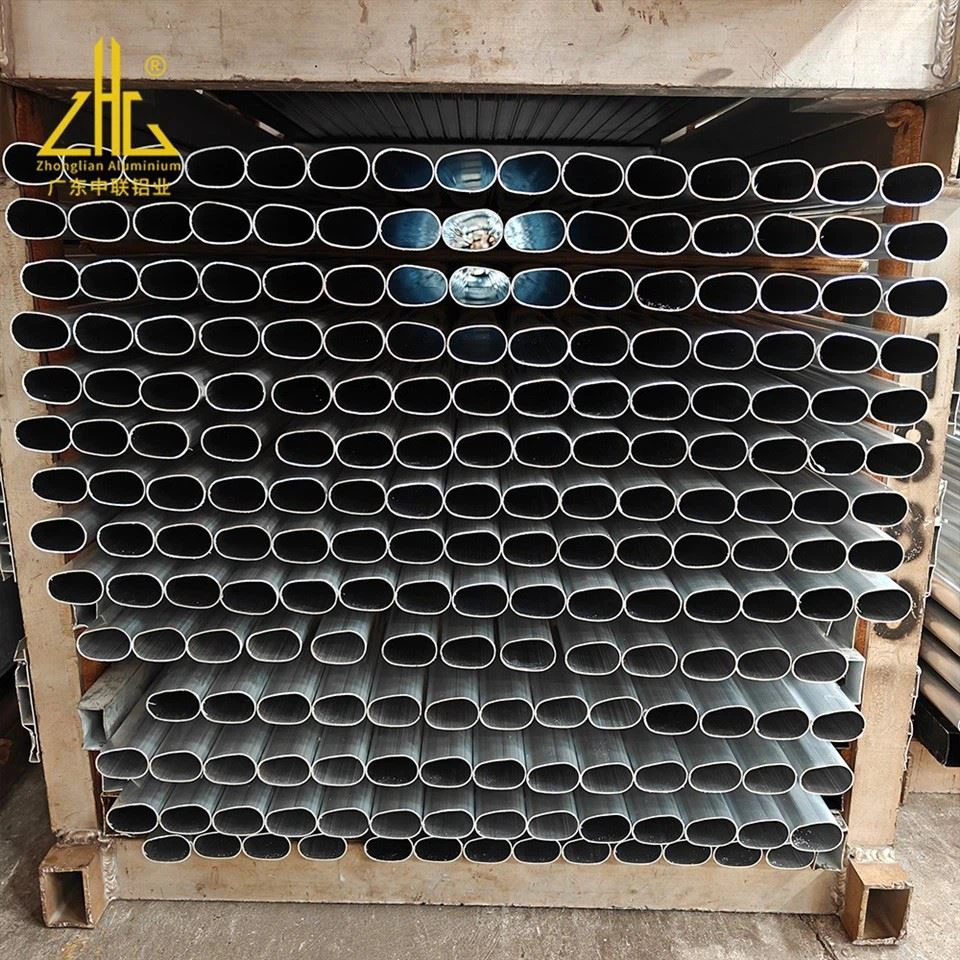

Packing reference
We understand the importance of proper packaging to ensure the safe transportation and storage of our aluminum oval tubes. Our packaging is designed to protect the tubes from damage during transit and handling. Each tube is individually wrapped with protective film to prevent scratches and abrasions. For larger orders, the tubes are bundled together securely and placed in wooden crates or sturdy cartons. We also use shock - absorbing materials to prevent any movement or impact during transportation, ensuring that the tubes reach you in perfect condition.
customers reviews
Over the past 33 years, we have served customers from all over the world, and our extruded 6061 & 6063 aluminum oval tubes have received widespread acclaim. Customers praise our products for their superior quality, precise dimensions, and excellent performance. Our commitment to on - time delivery, competitive pricing, and outstanding customer service has earned us a reputation as a reliable partner in the aluminum industry. Don't just take our word for it - check out the testimonials from our satisfied customers on our website.
why choose ZHONGLIAN?
33+ Years of Aluminum Extrusion Expertise
Factory Direct Pricing & Fast Lead Times
1. Rich Experience
With more than 33 years of experience in aluminum extrusion, we have accumulated in - depth knowledge and expertise in the industry. Our long - standing presence has allowed us to continuously improve our manufacturing processes and product quality.
2. Advanced Equipment
We invest heavily in state - of - the - art production and processing equipment, enabling us to produce high - quality aluminum oval tubes efficiently and with high precision. Our advanced extrusion presses, CNC machining centers, and surface treatment facilities are among the best in the industry.
3. Skilled Team
Our team consists of highly skilled engineers, technicians, and production workers who are passionate about their work. Their expertise and dedication ensure that every product that leaves our factory meets the highest standards of quality.
4. Cost - effective Solutions
Thanks to our efficient production processes and large - scale production capabilities, we can offer our extruded 6061 & 6063 aluminum oval tubes at competitive prices without compromising on quality. This allows our customers to get the best value for their money.
ordering process
Contact us for high-quality extruded 6061/6063 aluminum oval tubes tailored to your project needs. Your reliable aluminum extrusion supplier since 1992!
