Foshan Pailian Aluminium Ltd is one of the most reliable manufacturers and suppliers of custom aluminum heat sink extrusion profiles in China. Welcome to wholesale cheap custom aluminum heat sink extrusion profiles made in China here from our factory. We also accept customized orders.

High-Efficiency Thermal Solutions for Industry & Electronics

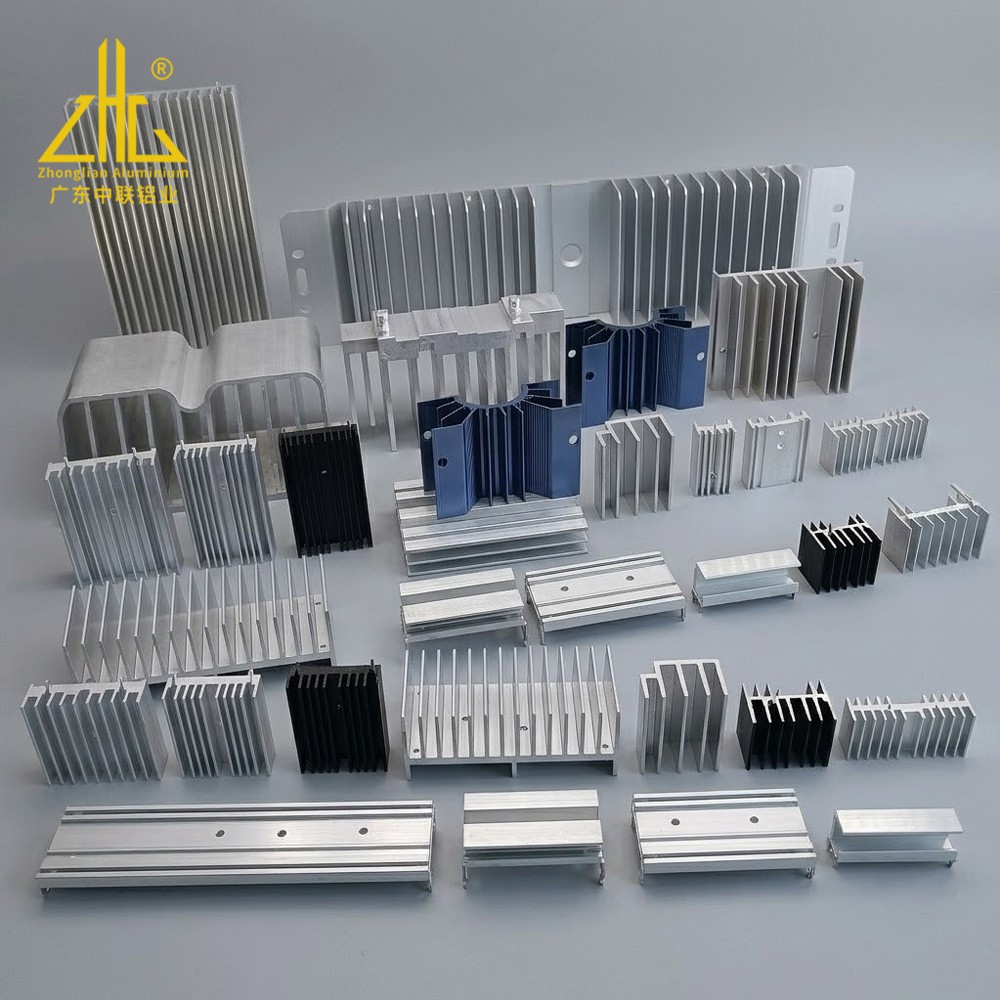

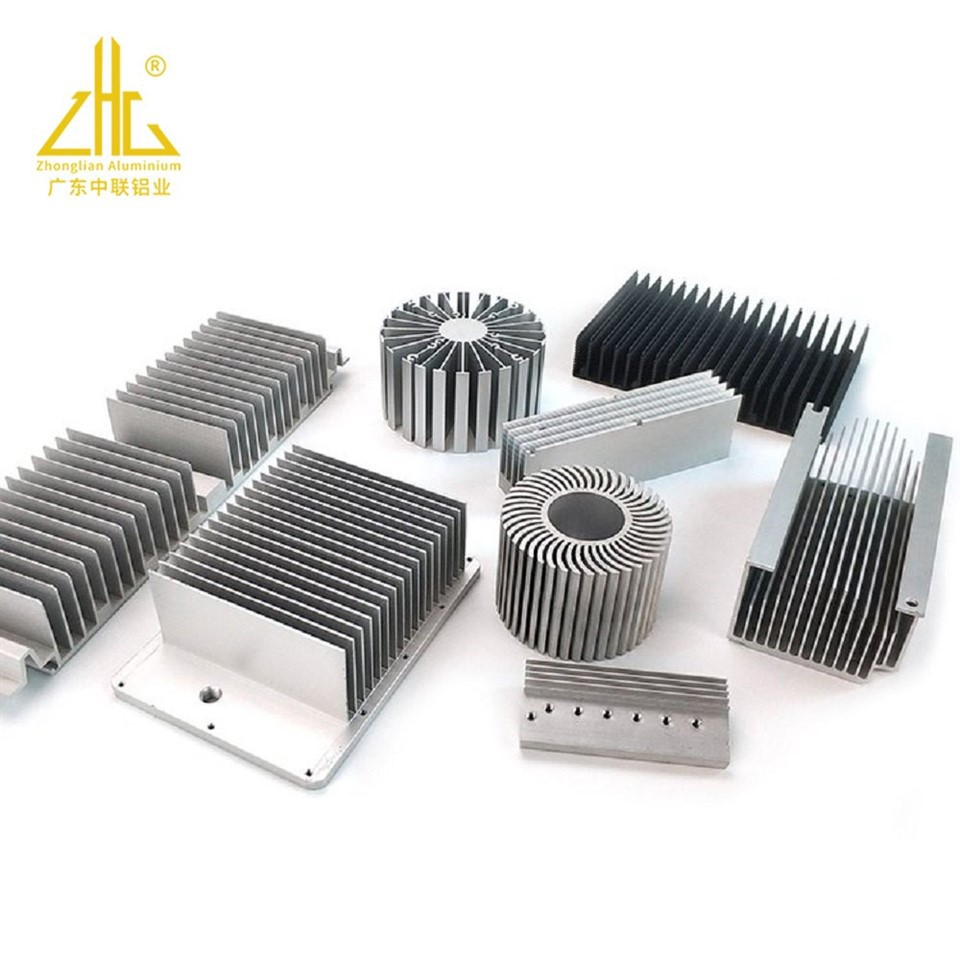

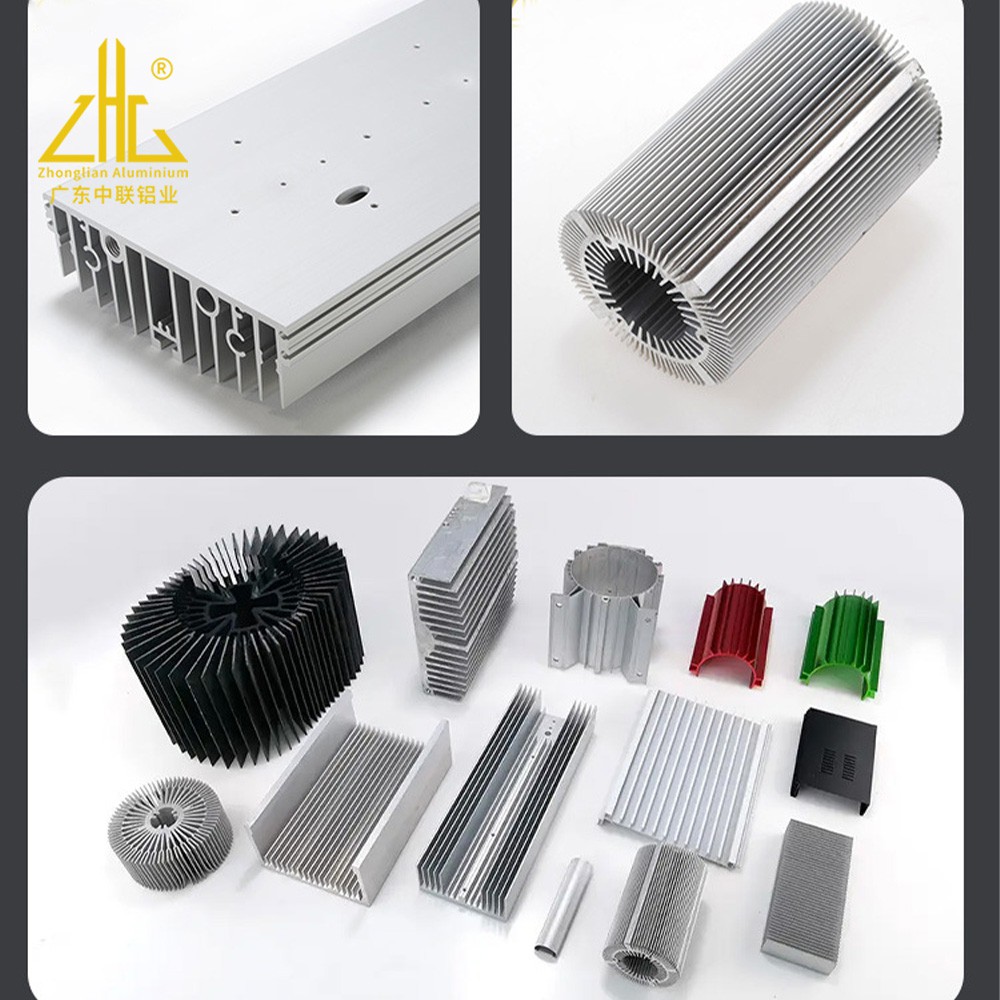

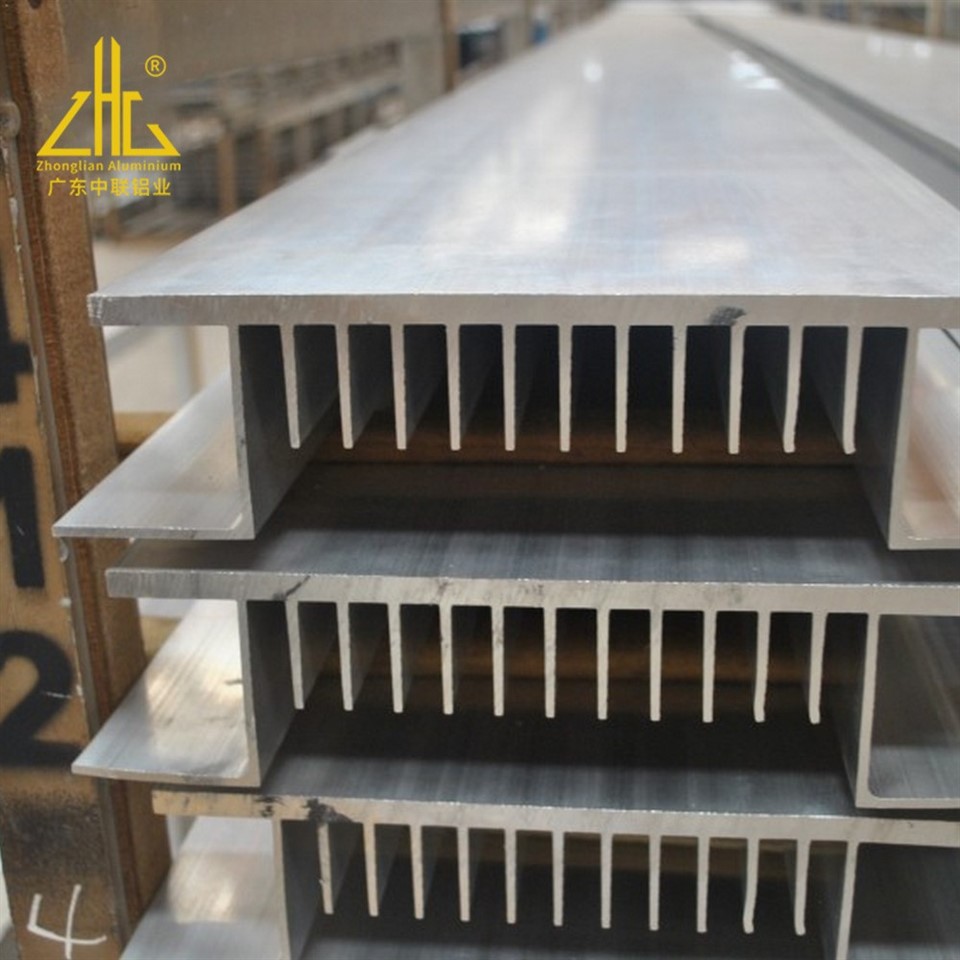

Custom aluminum heat sink extrusion profiles are specially designed for thermal management in LED lighting, power supplies, inverters, automotive electronics, communication equipment, and industrial control systems. Using high‑thermal‑conductivity aluminum alloy and precision extrusion technology, these profiles provide stable heat dissipation, lightweight structure, and flexible customization for diverse cooling demands.

We focus on designing and manufacturing custom aluminum heat sink extrusion profiles with optimized fin structure, high dimensional accuracy, and reliable surface treatment. From small‑batch prototypes to large‑scale mass production, we deliver stable, high‑performance heat sink solutions for global customers.

Our aluminum heat sink extrusion profiles are widely trusted in global industries for:​

• LED Lighting: Street lights, high-bay lights, downlights, and LED display cooling​
• Power Electronics: Inverters, power supplies, transformers, and IGBT/UPS systems​
• Automotive: EV battery cooling, engine control units (ECUs), and on-board electronics​
• Communication: Base station equipment, routers, and network switches​
• Industrial Control: Welding machines, frequency converters, and industrial sensors​
• New Energy: Solar inverters, wind power control systems, and battery storage cooling

​

Our business is all about customer satisfaction. Over the years, we have worked with customers from over 80 countries and 200 regions worldwide, and our efforts have been met with resounding praise. The key to our success is our dedication to providing exceptional service and quality products that exceed our customers' expectations. With a focus on building long-term relationships, we strive to go above and beyond to deliver top-notch solutions that help our clients achieve their goals. We are proud to say that our customers have given us rave reviews, and we are committed to continuing our partnership with them for many years to come. Whether you are looking for customized solutions or exceptional service, we have the experience and expertise to meet your needs. Contact us today to learn more about how we can help you achieve your goals.

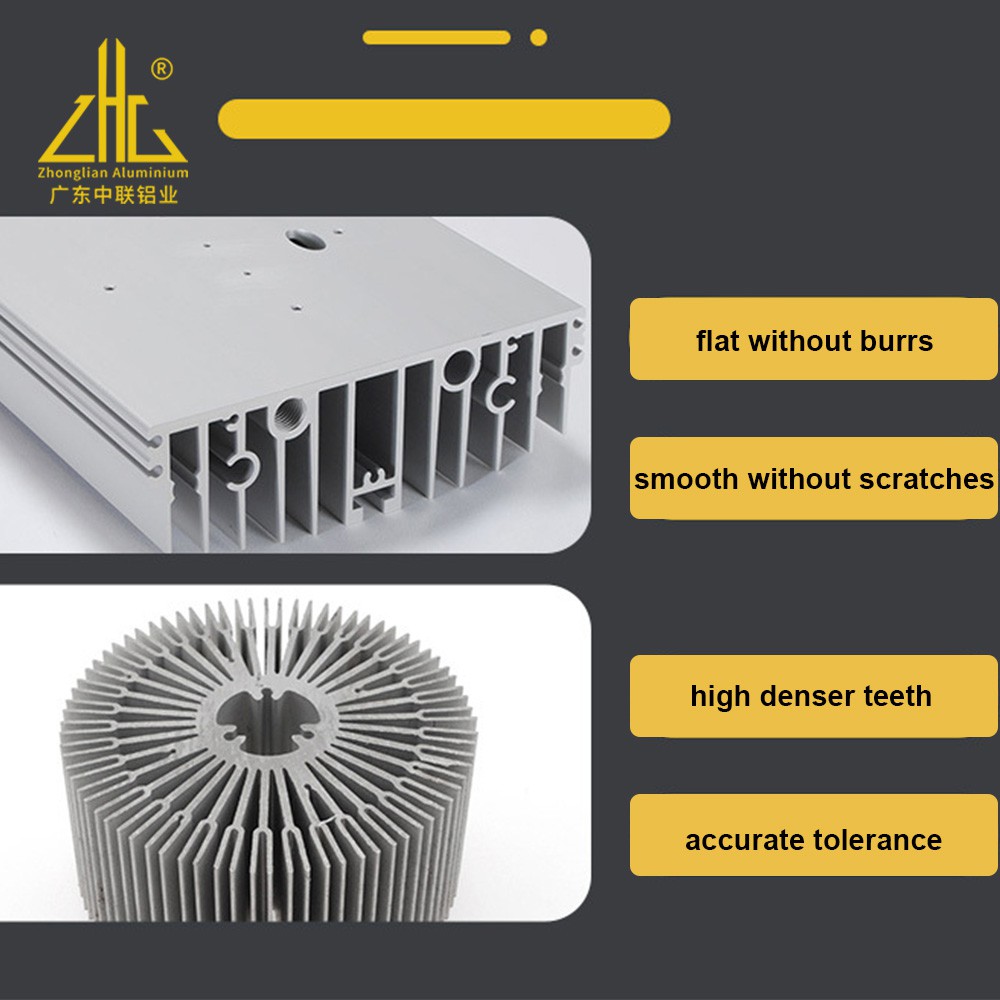

6063-T5 Heat Sink Extrusions​

6063‑T5 is the most commonly used alloy for custom aluminum heat sink extrusion profiles. It offers good thermal conductivity (≈200 W/m·K), excellent extrudability, and ideal surface treatment performance. The production process is efficient, making it suitable for most electronic cooling applications with standard structural requirements.​

6063-T6 Heat Sink Extrusions​

6063‑T6 provides higher strength and better structural stability, making it suitable for heat sinks that require greater rigidity or are used in high‑vibration environments. Thermal performance remains excellent (≈210 W/m·K) while durability is enhanced for demanding industrial applications.​

​

​

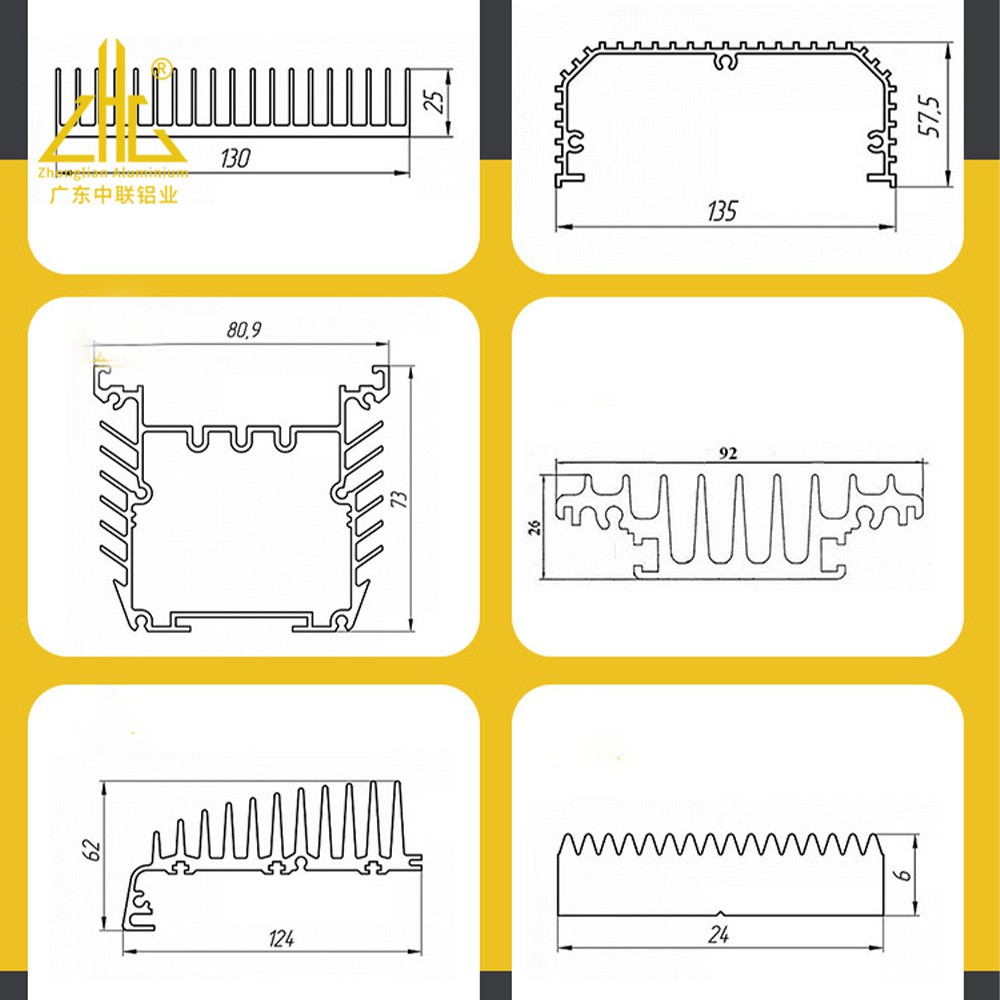

We provide full customization for custom aluminum heat sink extrusion profiles:​

✅️ Profile Structure Customization​

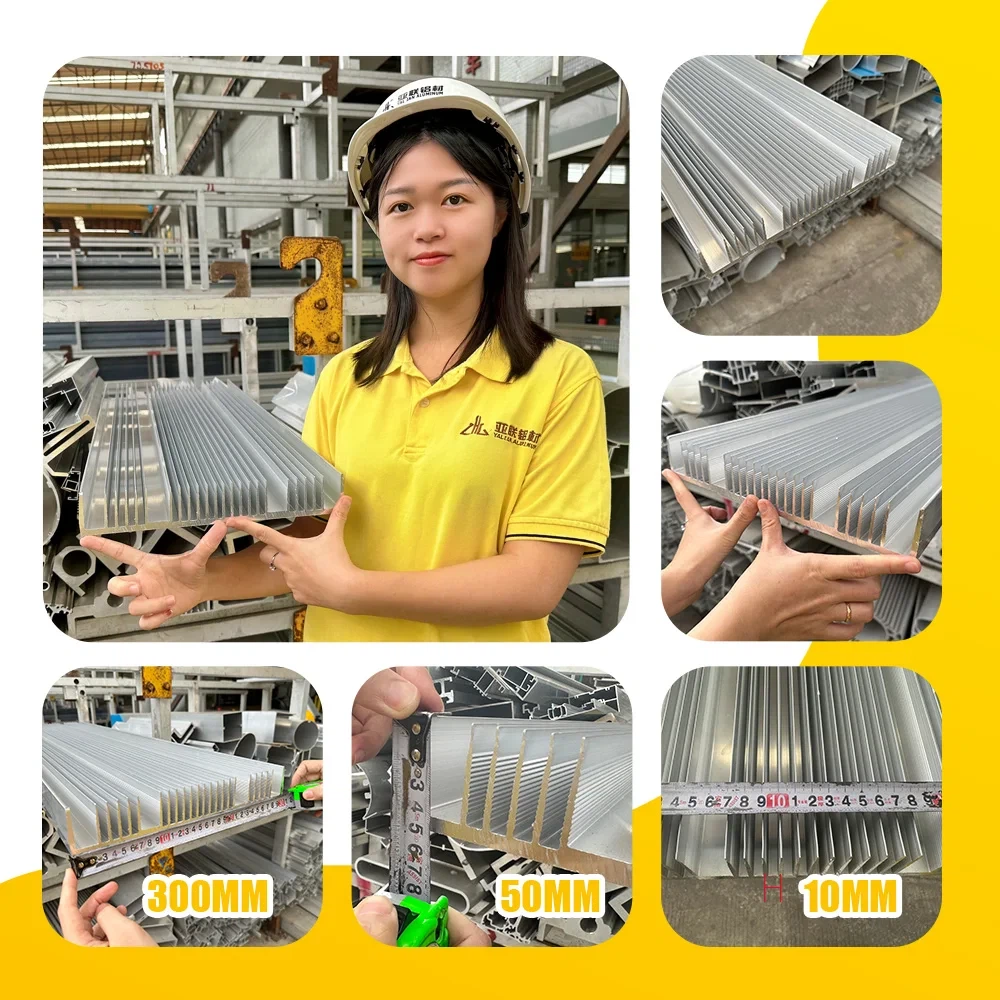

• Custom fin spacing, height, and shape (pin fin, straight fin, comb fin, etc.)​
• Complex heat sink cross‑sections based on 2D / 3D drawings (STEP/IGS/CAD/PDF)​
• Optimized thermal design (fin density, surface area) for higher cooling efficiency​

✅️ Precision CNC Processing​

• Custom length cutting (tolerance ±0.5mm)​
• Drilling, tapping, milling for mounting holes and assembly​
• Notching, chamfering, deburring for safe installation​
• Custom fabrication (welding, bending, assembling)​

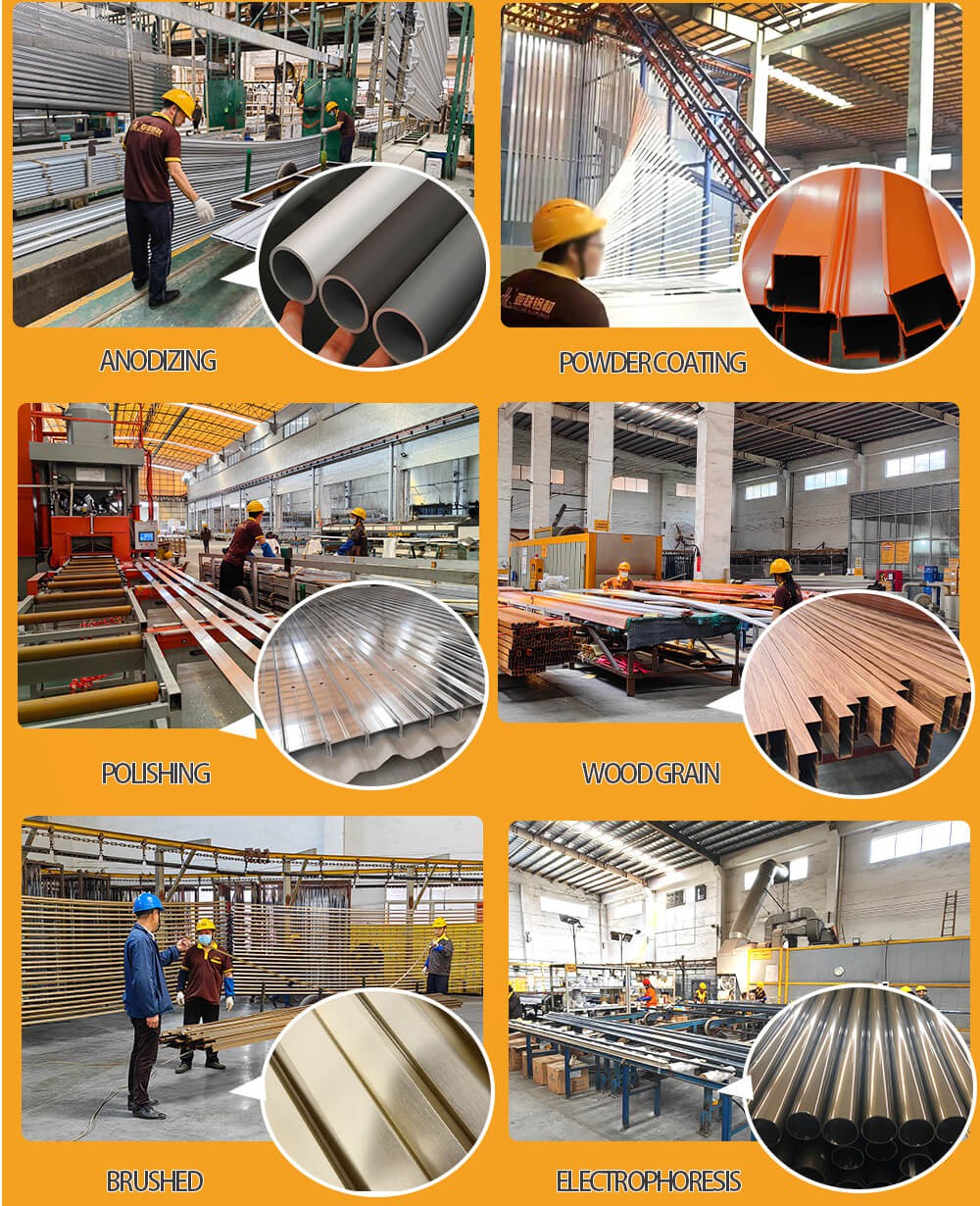

✅️ Surface Treatment​

• Anodizing (clear, black, blue, custom colors) – enhances corrosion resistance and heat dissipation​
• Powder coating (full RAL color range) – for aesthetic and protective needs​
• Sandblasted, brushed, or polished finishes – for specific application requirements

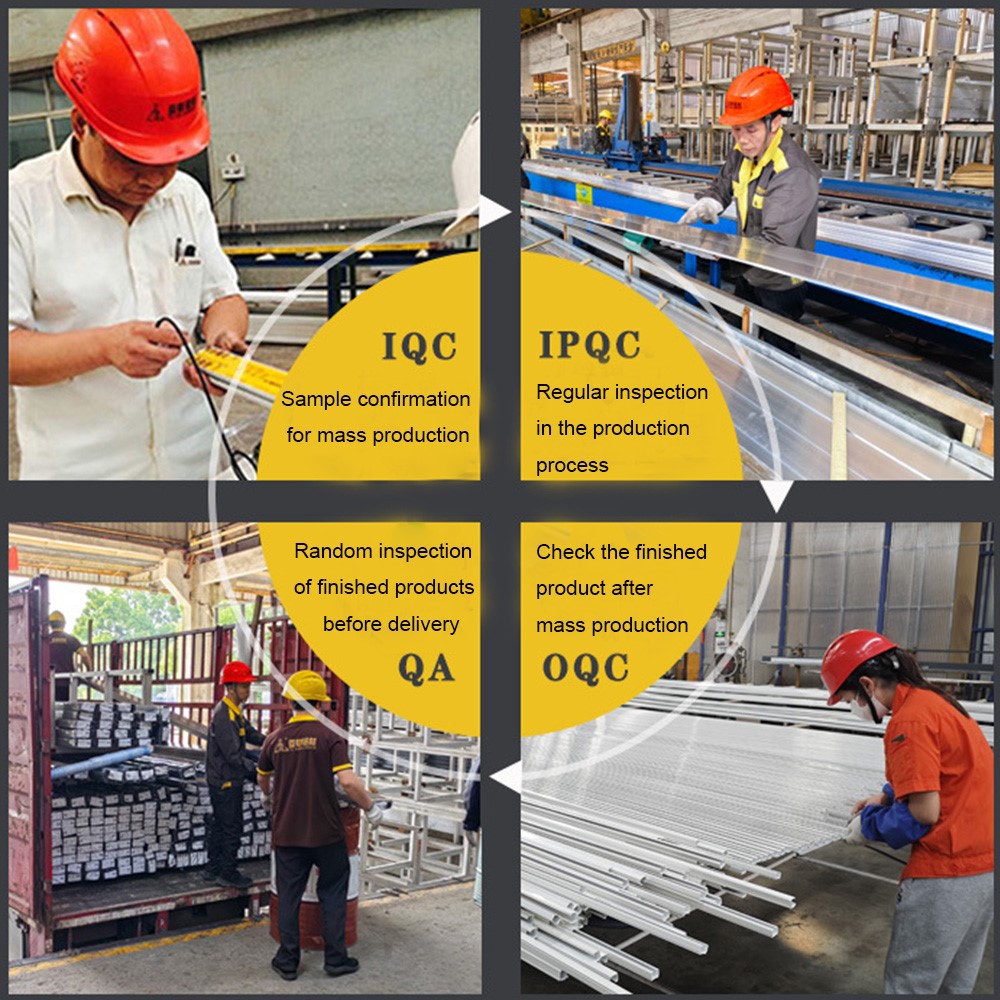

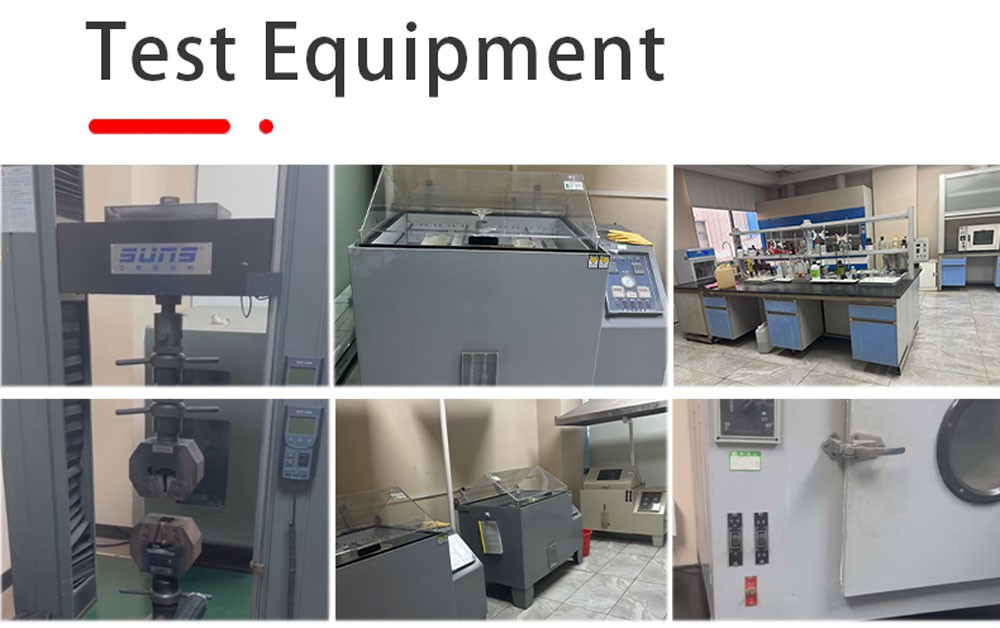

To ensure reliable thermal performance and consistent quality for bulk orders:​

1. Raw material inspection: Spectral analysis to verify aluminum/copper purity and composition​

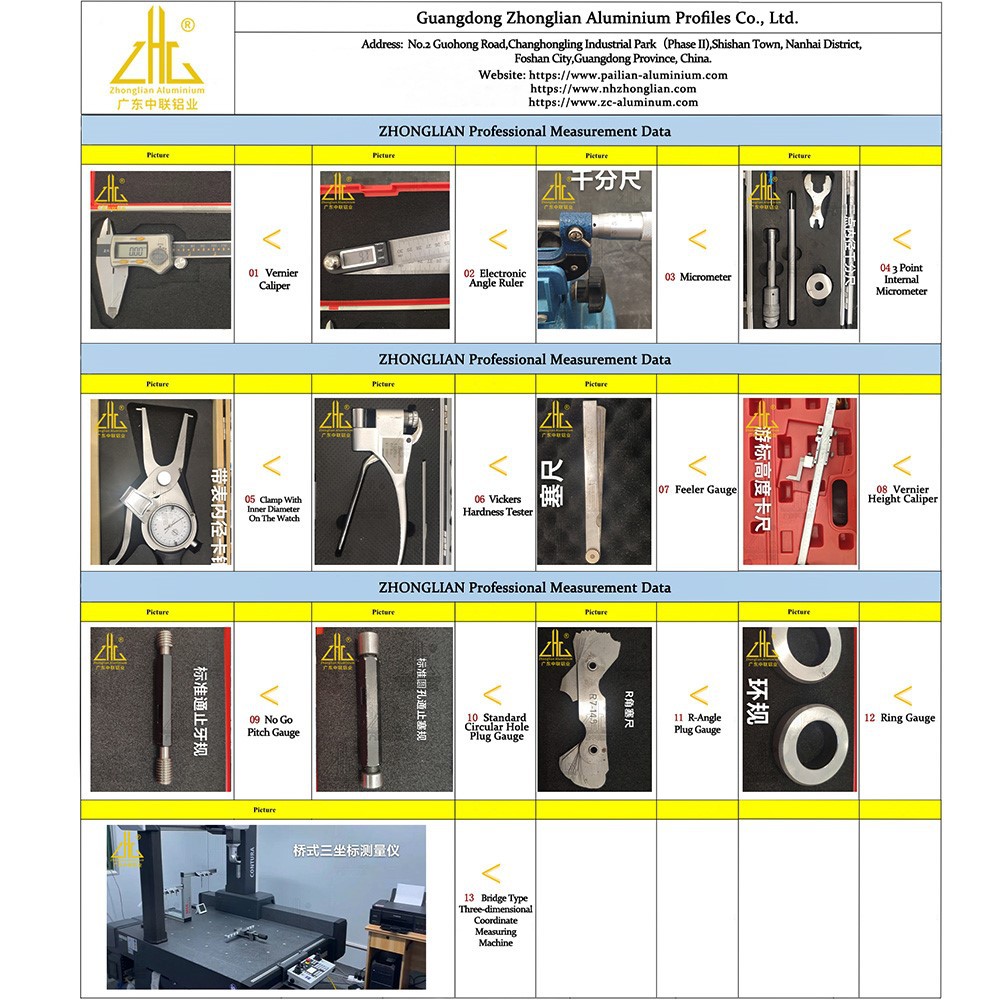

2. In-line testing: Dimensional accuracy check (100% coverage) and fin structure verification​
3. Thermal performance testing: Heat dissipation efficiency validation for custom designs​
4. Surface treatment inspection: Adhesion test, corrosion resistance test (salt spray), and color consistency check​
5. Pre-shipment audit: Random sampling for tolerance, strength, and thermal conductivity testing​
6. Batch traceability: Each shipment includes a quality report with test data and batch number

✅ Professional Thermal Design: Engineer team optimizes fin structure for maximum heat dissipation​

✅ Full Customization: Supports complex shapes, sizes, and finishes based on your exact needs​

✅ High Precision: Tolerance as tight as ±0.01mm for perfect fit with electronic components​

✅ Stable Bulk Supply: Annual production capacity of 50,000+ sets, fast lead time for mass orders​

✅ One-Stop Service: From design, extrusion, CNC machining to surface treatment and assembly​

✅ Global Compliance: ISO 9001, CE, and RoHS certified, meets EU/US industrial standards​

✅ Cost-Effective: Factory direct pricing with flexible MOQ for prototypes and large orders

Technical & Design Questions​

1. What factors affect the heat dissipation efficiency of extruded heat sinks?​

The key factors include:​

• Fin Design: Fin height, density, and thickness (larger surface area = better heat dissipation)​
• Thermal Conductivity: Material choice (copper > 6061 aluminum > 6063 aluminum)​
• Surface Treatment: Anodizing enhances heat transfer by improving emissivity; powder coating may slightly reduce thermal efficiency but offers corrosion protection​
• Installation: Direct contact with heat source, thermal interface material (TIM) quality, and airflow conditions​

2. How to determine the right fin density for my extruded heat sink?​

Fin density depends on your heat load and airflow:​

• High Heat Load + Forced Airflow: Denser fins (10–15 fins per inch) to maximize surface area​
• Low Heat Load + Natural Convection: Sparser fins (3–8 fins per inch) to avoid airflow restriction​
• Space Constraints: Optimize fin height and thickness instead of density to balance surface area and installation space​

3. Can extruded heat sinks be used for high-power electronic devices (100W+)?​

Yes. For high-power applications, we recommend:​

• Using 6061 aluminum or copper for higher thermal conductivity​
• Optimizing fin structure (taller, denser fins) or adding heat pipes for enhanced heat transfer​
• Combining with forced airflow (fans) or liquid cooling systems for extreme heat loads​

4. What is the maximum operating temperature for extruded aluminum heat sinks?​

Extruded aluminum heat sinks (6063/6061) can withstand continuous operating temperatures up to 120°C. For high-temperature environments (120°C–200°C), we offer specialized surface treatments (hard anodizing) and material upgrades (heat-resistant alloys) to ensure stability and corrosion resistance.​

Production & Order Questions​

5. How long does it take to develop a custom die for extruded heat sinks?​

Die development time is 7–10 days for standard custom shapes and 10–15 days for complex cross-sections. The die cost is refundable for bulk orders (usually ≥5,000 units) to reduce your initial investment.​

6. What is the difference between extruded heat sinks and bonded fin heat sinks?​

​

7. Do you provide thermal simulation testing for custom extruded heat sinks?​

Yes. We offer free thermal simulation (using ANSYS/Icepak software) for custom designs. Provide your heat load, working temperature, airflow, and installation constraints, and we'll deliver a detailed report including temperature distribution, heat transfer rate, and design optimization suggestions.​

8. Can you accommodate small-batch orders (≤500 units) for custom extruded heat sinks?​

Absolutely. We support low MOQ for small-batch orders, with flexible pricing based on your requirements. For orders ≤500 units, we may use existing dies (if compatible) or offer die-sharing options to reduce costs. Lead time for small-batch custom orders is 10–15 days.​

Logistics & After-Sales Questions​

9. How to ensure the extruded heat sinks are not damaged during international shipping?​

We use multi-layer protection packaging:​

• Individual heat sinks wrapped in EPE foam to prevent scratches​
• Bundled with anti-rust film (for anodized/powder-coated finishes)​
• Packed in fumigation-free plywood crates (ISPM 15 certified) with internal bracing​
• Fragile labels and handling instructions for logistics partners​
• Insurance coverage for high-value orders upon request​

10. What is your warranty policy for extruded heat sinks?​

We provide a 3-year warranty for extruded heat sinks:​

• Warranty covers defects in material, workmanship, and thermal performance​
• No warranty for damage caused by improper installation, misuse, or modification​
• Free replacement or repair for qualified warranty claims (we cover shipping costs for bulk orders)​
• Lifetime technical support for design optimization and application guidance​

11. Do you offer OEM/ODM services for extruded heat sinks?​

Yes. Our OEM/ODM services include:​

• Custom branding (laser engraving, silk-screen printing)​
• Custom packaging with your company logo and instructions​
• Design collaboration (our engineers work with your team to refine specifications)​
• Confidentiality agreement (NDA) for proprietary designs​

12. How to request a quote for custom extruded heat sinks?​

To get a fast, accurate quote, please provide:​

• 2D/3D drawings (STEP/IGS/CAD/PDF) or sample​
• Material preference (6063/6061 aluminum, copper)​
• Temper (T5/T6) and surface treatment requirements​
• Quantity (sample, small-batch, bulk)​
• Heat load and application details (for design optimization)​

For inquiries about custom aluminum heat sink extrusion profiles, contact our dedicated project team today:​

• Email: zhlaluminum@gmail.com (24-hour response)​
• WhatsApp: +86-18825985370 (direct technical consultation)​
• WeChat: +86-18825985370 (share CAD files and project details)​
• Special Offer: Send your thermal requirements or 3D drawing, and we'll provide a free design optimization + thermal simulation test to ensure optimal heat dissipation.​

Zhonglian Aluminum – Your Reliable Partner for Custom Aluminum Heat Sink Extrusion Profiles​
